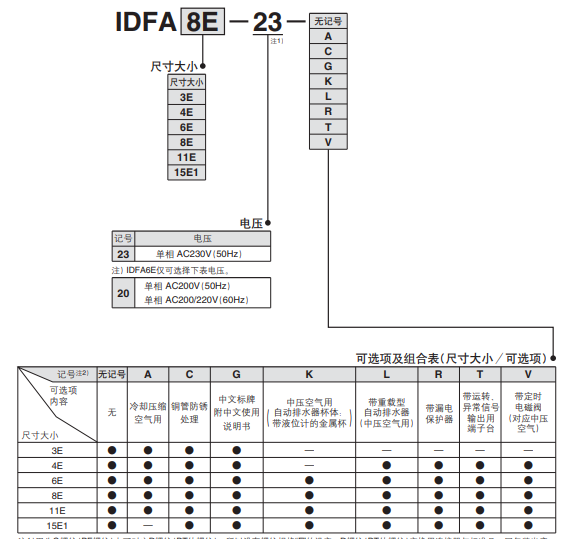

安裝要求：SMC空氣干燥機IDFA15E1-23-G

結構介紹：

主要由預冷器、冷卻器、過濾器和壓縮冷凝機

氣中所含的飽和水汽凝結成液態水,通過過濾分

組組成。其工作原理是通過冷卻,使壓縮空

離作用,凝結水經自動排水器排出,從而得到干

燥、純凈的壓縮空氣。

啟動前準備：

檢查回氣壓表讀數，如果為零，則冷凍劑已泄

露。與聯系，以便維修，三相供應電的冷

熱器已經工作。?于水冷冷凍式干燥機檢查冷卻

水（水壓至少0.24MPa）是否器水量調節閥將

凍式空氣干燥機裝有壓縮機曲軸箱加熱器工作

6到10個小時。在晚上或為停機時仍應給干燥

機供電，以便曲軸箱加熱器的表面溫度確保加

根據干燥機不同的負荷來調節和控制冷卻水的

流量。水冷冷凝器的排污口也應安裝堵頭
